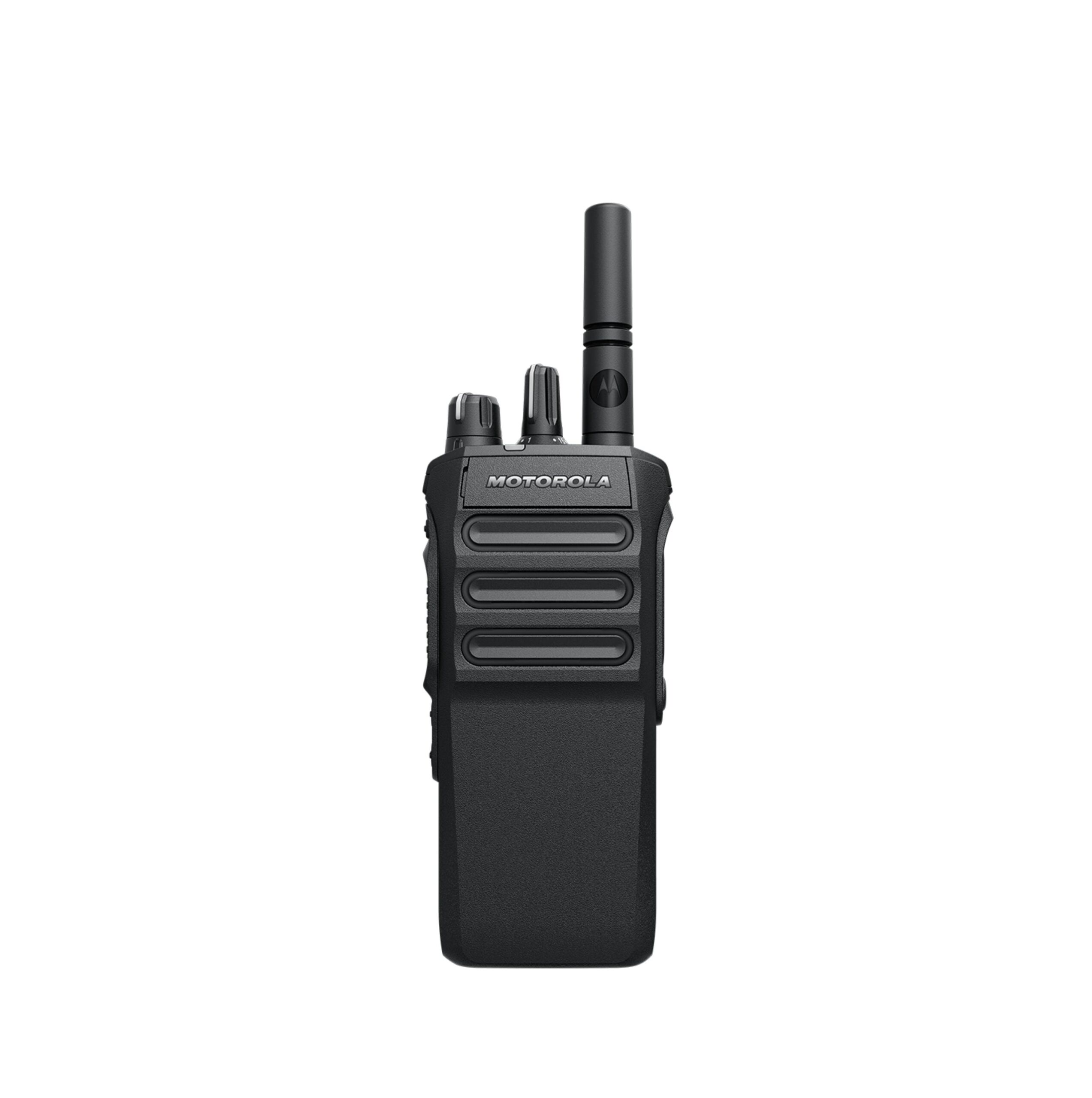

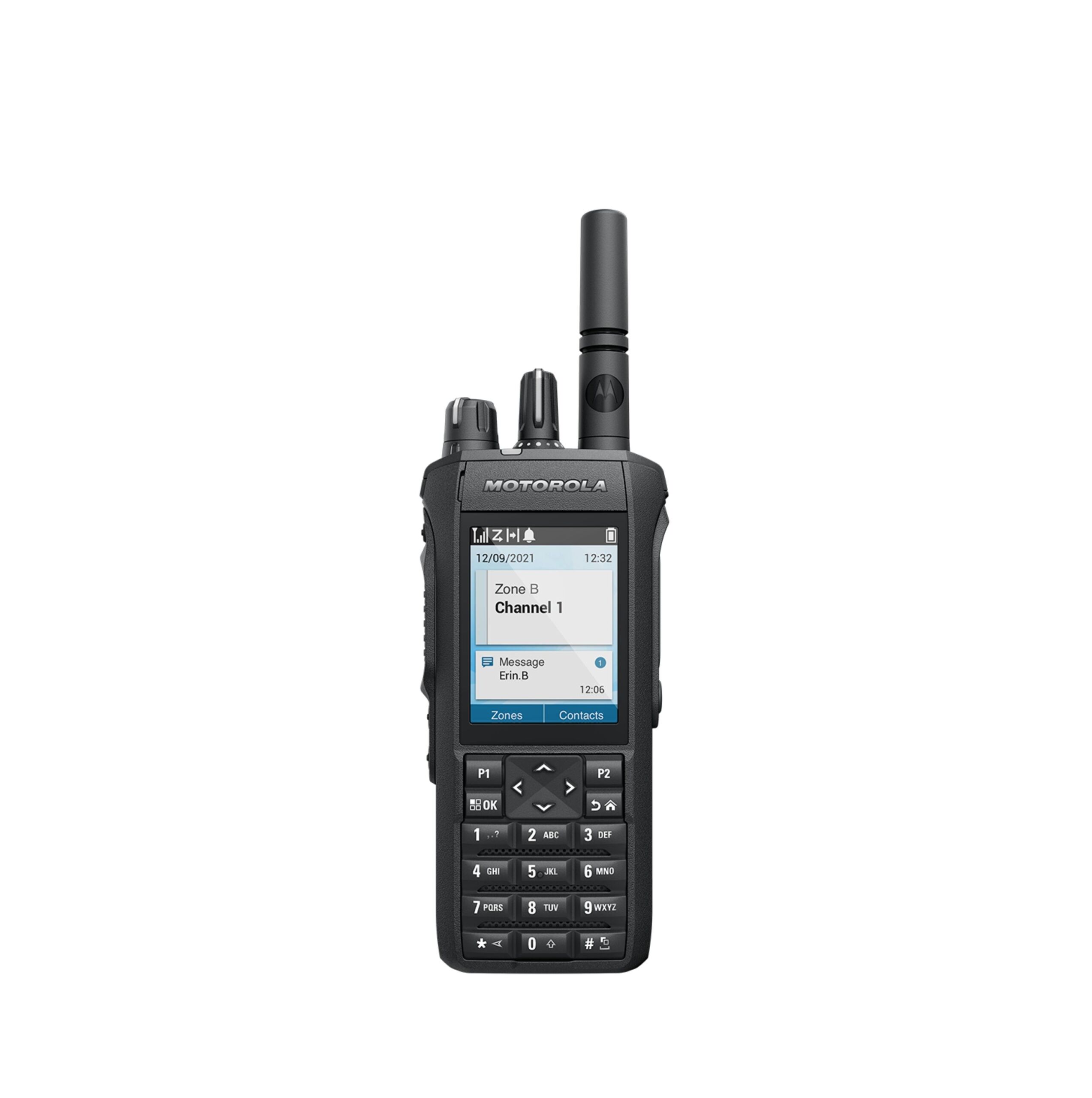

Radio Motorola MotoTRBO R7

Radio Motorola MotoTRBO R7

KEY FEATURES MotoTRBO R7
● UHF/VHF/350MHz
● Digital/Analogue and 5-Tone support
● Wi-Fi 2.4/5.0 GHz
● WPA3 Wi-Fi security protocol compliant
● Bluetooth 5.2
● 2.4” 320 x 240 px. QVGA display
● Modern, intuitive user experience
● Full suite of accessories
● Sleek and ergonomic form factor
● Automatic Acoustic Feedback Suppression
● Adaptive Dual Microphone Noise Suppression
● Intelligent Audio
● IMPRESTM technology
● Programmable loudness up 107 phons
● Wideband speaker and microphones
● Simple audio configuration
● Up to 28 hours of battery life*
● IP68 (waterproof up to 2 metres for 2 hours)
● IP66 (concentrated water jet pressure)
● Intrinsically safe option (UL TIA-4950)
● Disinfectant and decontamination substance resistant housing2
● Robust and corrosion-proof side connector
● Rugged to MIL-STD 810

SPESIFIKASI UMUM Motorola R7:
● Model :
○ R7 FULL KEYPAD MODEL (FKP)
○ R7 AND R7A NO KEYPAD MODEL (NKP)
● Frekuensi :
○ UHF : 400-527 MHz
○ UHF/L : 350-400 MHz
○ VHF : 136-174 MHz
● Typical RF Output
○ High Power : UHF = 4W; VHF = 5 W
○ Low Power : 1W
● Channel Spacing : 12.5 kHz, 20 kHz*, 25 kHz
(*R7a does not support 350MHz band. R7 FKP and R7 NKP 350MHz models do not
support 20kHz channel spacing).
● Channel Capacity :
○ R7 FULL KEYPAD MODEL (FKP) : 1000 Channels
○ R7 AND R7A NO KEYPAD MODEL (NKP) : 64 Channels
● Display : 2.4” 320 x 240 px. QVGA display, with up to 10 lines of text

MOTOTRBO R7 FKP with 2200 mAh Slim IMPRES Li-Ion battery (PMNN4807)
● Dimensions (H x W x D) : 132 x 56 x 35 mm; 132 x 56 x 31 mm
● Weight : 316 g
(Radio weight information is exclusive of General Option Board and antenna).
● Digital / Analogue Battery Life : 19 / 14.5 hrs 20 / 15 hrs
(Typical battery life, 5/5/90 profile at maximum transmitter power with GNSS,
Bluetooth, Wi-Fi and Option Board applications disabled. Actual observed runtimes
may vary).
● Operating Temperature : -20 °C to 60 °C

MOTOTRBO R7 FKP with 2450 mAh Li-Ion battery (PMNN4808)
● Dimensions (H x W x D) 132 x 56 x 41 mm 132 x 56 x 37 mm
● Weight3 346 g
(Radio weight information is exclusive of General Option Board and antenna).
● Digital / Analogue Battery Life: 21.5 / 16.5 hrs 22 / 17 hrs.
(Typical battery life, 5/5/90 profile at maximum transmitter power with GNSS,
Bluetooth, Wi-Fi and Option Board applications disabled. Actual observed runtimes
may vary).
● Operating Temperature -20 °C to 60 °C

MOTOTRBO R7 FKP with 2850 mAh IMPRES Li-Ion battery (PMNN4809)
● Dimensions (H x W x D) 132 x 56 x 35mm 132 x 56 x 31mm
● Weight 333 g
(Radio weight information is exclusive of General Option Board and antenna).
● Digital / Analogue Battery Life : 25 / 19 hrs 26 / 19.5 hrs 25.
(Typical battery life, 5/5/90 profile at maximum transmitter power with GNSS,
Bluetooth, Wi-Fi and Option Board applications disabled. Actual observed runtimes
may vary).
● Operating Temperature -20 °C to 60 °C

MOTOTRBO R7 FKP with 3200 mAh HazLoc IMPRES Li-Ion battery (PMNN4810)
● Dimensions (H x W x D) 132 x 56 x 41 mm 132 x 56 x 37 mm
● Weight 366 g
(Radio weight information is exclusive of General Option Board and antenna).
● Digital / Analogue Battery Life : 28 / 21.5 hrs 29 / 22 hrs
(Typical battery life, 5/5/90 profile at maximum transmitter power with GNSS,
Bluetooth, Wi-Fi and Option Board applications disabled. Actual observed runtimes
may vary).
● Operating Temperature -20 °C to 60 °C

AUDIO
● Intelligent Audio in Analogue and Digital • • •
● IMPRES Audio • • •
● Automatic Acoustic Feedback Suppressor • • •
● Microphone Distortion Control • • •
● User-Selectable Audio Profile • • •
● Trill Enhancement • • •
● Advanced Dual Microphone Noise Suppression6 (except R7a)
● Single Microphone Noise Cancellation (only R7a)

SYSTEM
● Single Microphone Noise Cancellation
● Dual Capacity Direct Mode
● Conventional
● IP Site Connect
● Capacity Plus Single/Multi Site
● Capacity Max (optional)

Termasuk dalam pembelian MotoTRBO R7:
Semua Part Original Resmi Motorola
• 1 Unit HT R7
• 1 Unit Antena VHF/UHF (Sesuai frekuensi)
• 1 Unit Baterai
• 1 Unit Charger
• 1 Unit BeltClip
• Manual Book & Kartu Garansi
