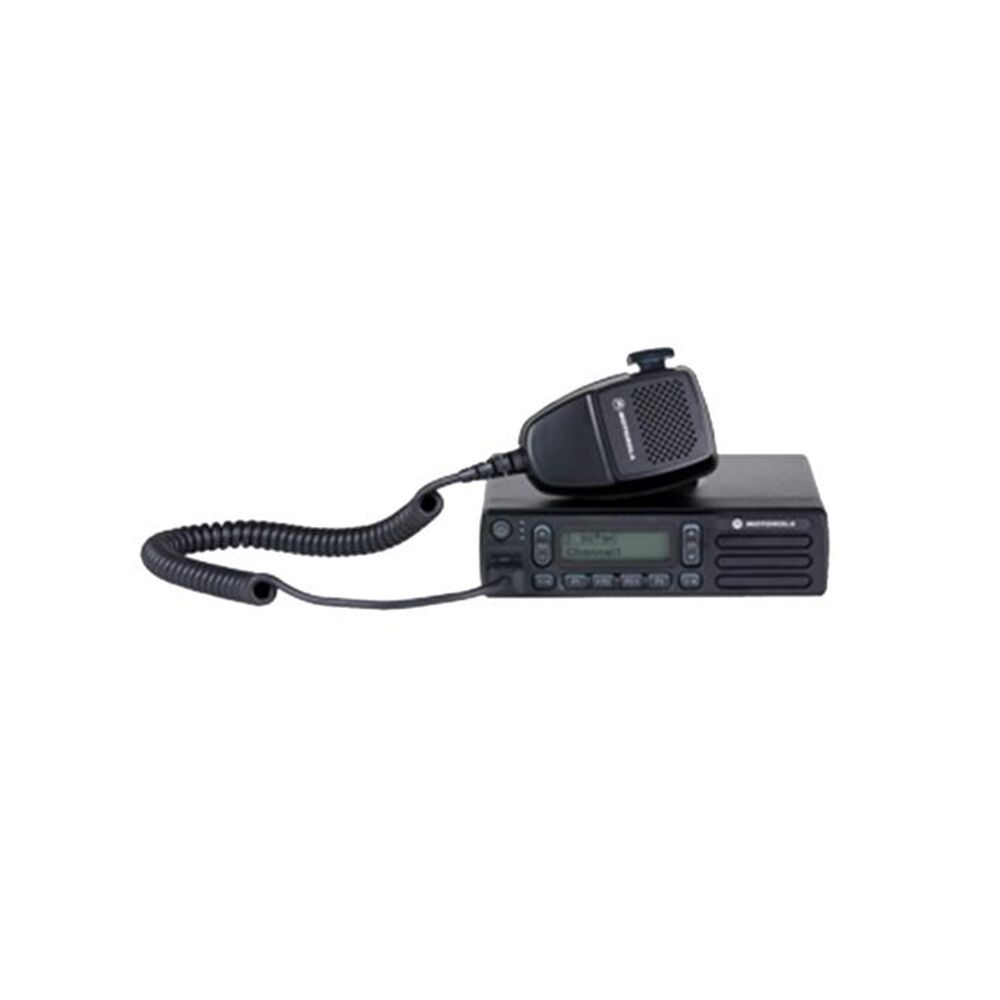

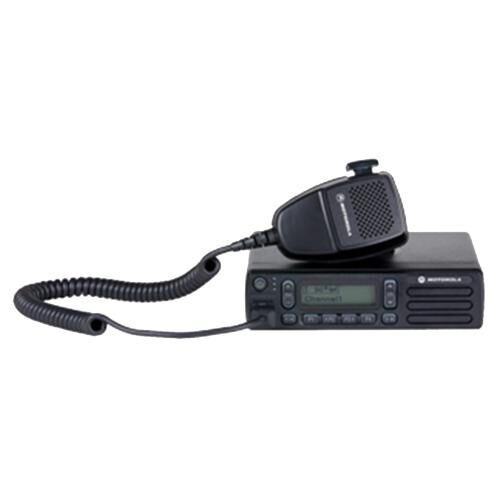

Motorola Xir M3688

FITUR

Transmit Interrupt (Decode Only) – Memungkinkan pengguna RIG XiR M3688 untuk memprioritaskan komunikasi kritis kapan dan di mana dibutuhkan.

Kompatibel dengan Radio Management Suite – Programkan RIG Xir M3688 Anda dengan cepat dan efisien, dengan alat Manajemen Radio. Radio dapat diprogram dalam batch ke template standar, memberikan hasil yang bebas kesalahan dan kinerja yang dioptimalkan.

Nilai IP54 – Tahan debu dan tahan percikan, sehingga Anda dapat bekerja dengan percaya diri di lingkungan yang menantang.

TEKNOLOGI: Digital

Spesifikasi XiR M3688

Channel Capacity                                         : 160 Channel

Daya Output                                                 : VHF 1-25 Watt; VHF 25-45 Watt

                                                                          UHF 1-25 Watt; UHF 25-40 Watt

Frekuensi                                                       : VHF 136-174 MHz

                                                                          UHF 403-438 MHz

Dimensi (TxLxP)                                                          : 1.7 x 6.7 x 5.3 in (44 x 169 x 134 mm)

Berat                                                              : 1.3 Kg

Receiver / Penerima

Channel Spacing                                                        : 12.5 kHz / 25 kHz

Frequency Stability (-30°C, +60°C, +25°C Ref)      : ± 0.5 ppm

Analogue Sensitivity (12 dB SINAD) Typical          : 0.3 uV (0.22 uV typical)

Digital Sensitivity (5% BER)                                       : 0.25 uV (0.19 uV typical)

Rated Audio                                                                : 4 W (Internal) 7.5 W (External – 8 ohms)

  13 W (External – 4 ohms)

Audio Distortion @ Rated Audio                            : 3% (typical)

Hum and Noise                                                                         : -40 dB @ 12.5 kHz / -45 dB @ 25 kHz

Audio Response                                                         : TIA603D

Conducted Spurious Emissions (TIA603D)           : -57 dBm

Transmitter / Pemancar

Channel Spacing             : 12.5 kHz / 25 kHz

Frequency Stability         : (-30°C, +60°C, +25°C Ref) ± 0.5 ppm

Low Power Output         : 1-25 W

High Power Output        : VHF 25-45 W

  UHF 25-40 W

Modulation Limiting       : ± 2.5 kHz @ 12.5 kHz / ± 5.0 kHz @ 25 kHz

FM Hum and Noise        : -40 dB @ 12.5 kHz / -45 dB @ 25 kHz

Conducted / Radiated Emission : -36 dBm < 1 GHz / -30 dBm > 1 GHz

Adjacent Channel Power : 60 dB @ 12.5 kHz / 70 dB @ 25 kHz

Audio Response              : TIA603D

Audio Distortion             : 3%

FM Modulation                             : 12.5 kHz: 11K0F3E

  25 kHz: 16K0F3E

4FSK Digital Modulation : 12.5 kHz Data: 7K60F1D and 7K60FXD

   12.5 kHz Voice: 7K60F1E and 7K60FXE

   Combination of 12.5 kHz Voice and Data: 7K60F1W

Digital Vocoder Type      : AMBE +2™

Digital Protocol                : ETSI TS 102 361-1, -2, -3
