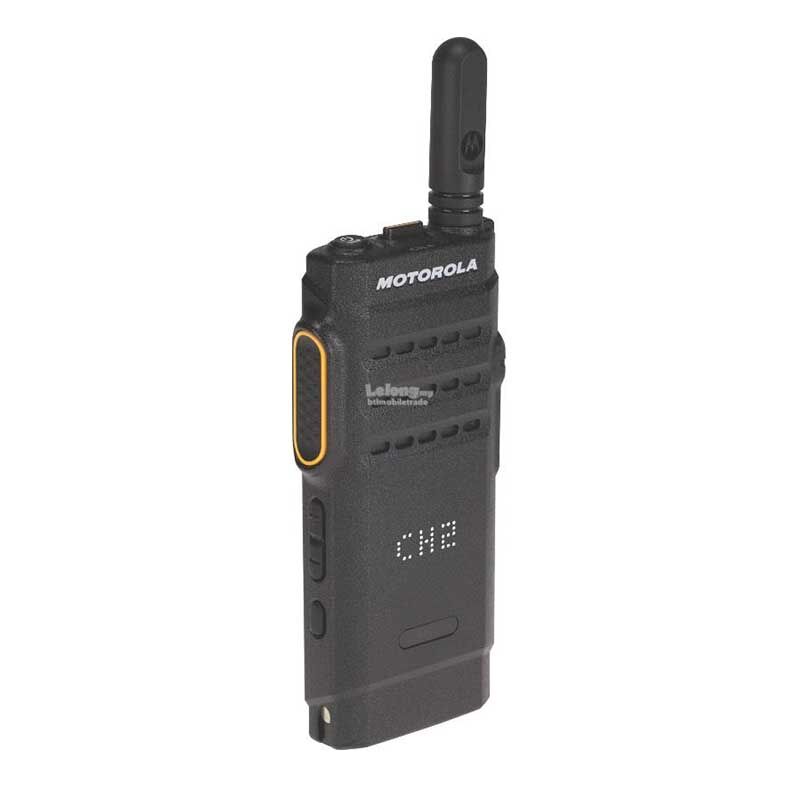

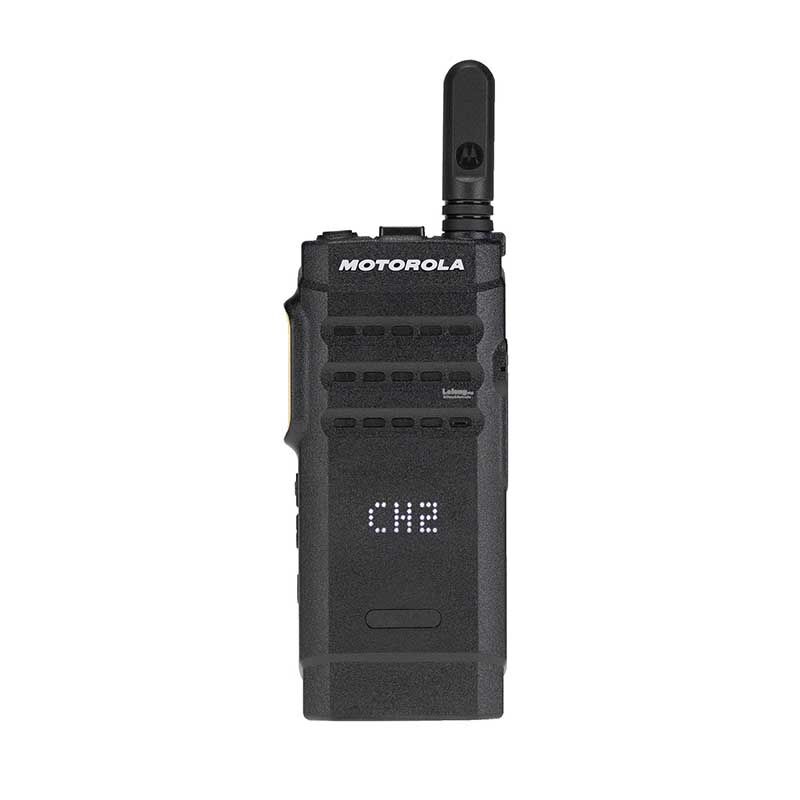

Motorola Sl1m
The MOTOTRBOTM SL1M provides reliable push-to-talk communication for the mobile, everyday user in an ultra-slim and rugged profile. Whether you’re coordinating an event or working in the field, the SL1M is boldly designed to keep you efficiently connected.
The latest technology works to make operation of the SL1M simple and straightforward. Ergonomic design allows one-handed radio operation, and a versatile accessory portfolio gives you the freedom to focus on the job at hand.
The SL1M is compatible with the MOTOTRBO features you’ll find are business-essential, for example a transmission can be interrupted to prioritize critical communications. Additionally, the SL1M utilizes digital and analog radio technology concurrently to fit seamlessly into your existing communication system.
DOWNLOAD BROCHURE
GENERAL SPECIFICATIONS | |||
VHF | UHF BAND 1 | ||
Display | Display | ||
Channel Capacity | 256 | ||
Typical RF Output | |||
Low Power Output High Power Output Analog Digital | 1W, 2W, 3W with Range Max technology | ||
Frequency | 136-174 MHz | 403-470 MHz | |
Dimensions(H x W x L) | 4.95 X 2.17 x 0.87 in(125.7 X 55.0 X 22.0 mm) | ||
Weight with Battery | 5.76 oz/ 163.4 g | ||
Power Supply | 3.7V (Nominal) | ||
Battery Life [Li-Ion (2300mAh) Battery]Analog (hours)Digital (hours) | 11.8*14* | ||
FCC Description | AZ489FT3835 | AZ489FT4922 | |
IC Description | 109U-89FT3835 | 109U-89FT4922 |
RECEIVER | ||
VHF | UHF BAND 1 | |
Frequency | 136-174 MHz | 403-470 MHz |
Channel Spacing | 12.5 kHz / 25 kHz | |
Frequency Stability(-30°C, +60°C, +25°C Ref) | ± 0.5 ppm | |
Analog Sensitivity(12 dB SINAD) | 0.3 uV0.22 uV (typical) | |
Digital Sensitivity(5% BER) | 0.25 uV0.19 uV (typical) | |
Intermodulation (TIA603D) | 70dB | |
Adjacent Channel Selectivity(TIA603D) | 45 dB @ 12.5 kHz70 dB @ 25 kHz | |
Spurious Rejection (TIA603D) | 70 dB | |
Rated Audio | 0.5 W (Internal) | |
Audio Distortion @ Rated Audio | 5% (3% typical) | |
Hum and Noise | -40 dB @ 12.5 kHz-45 dB @ 25 kHz | |
Audio Response | TIA603D | |
Conducted Spurious Emissions(TIA603D) | -57 dBm |
