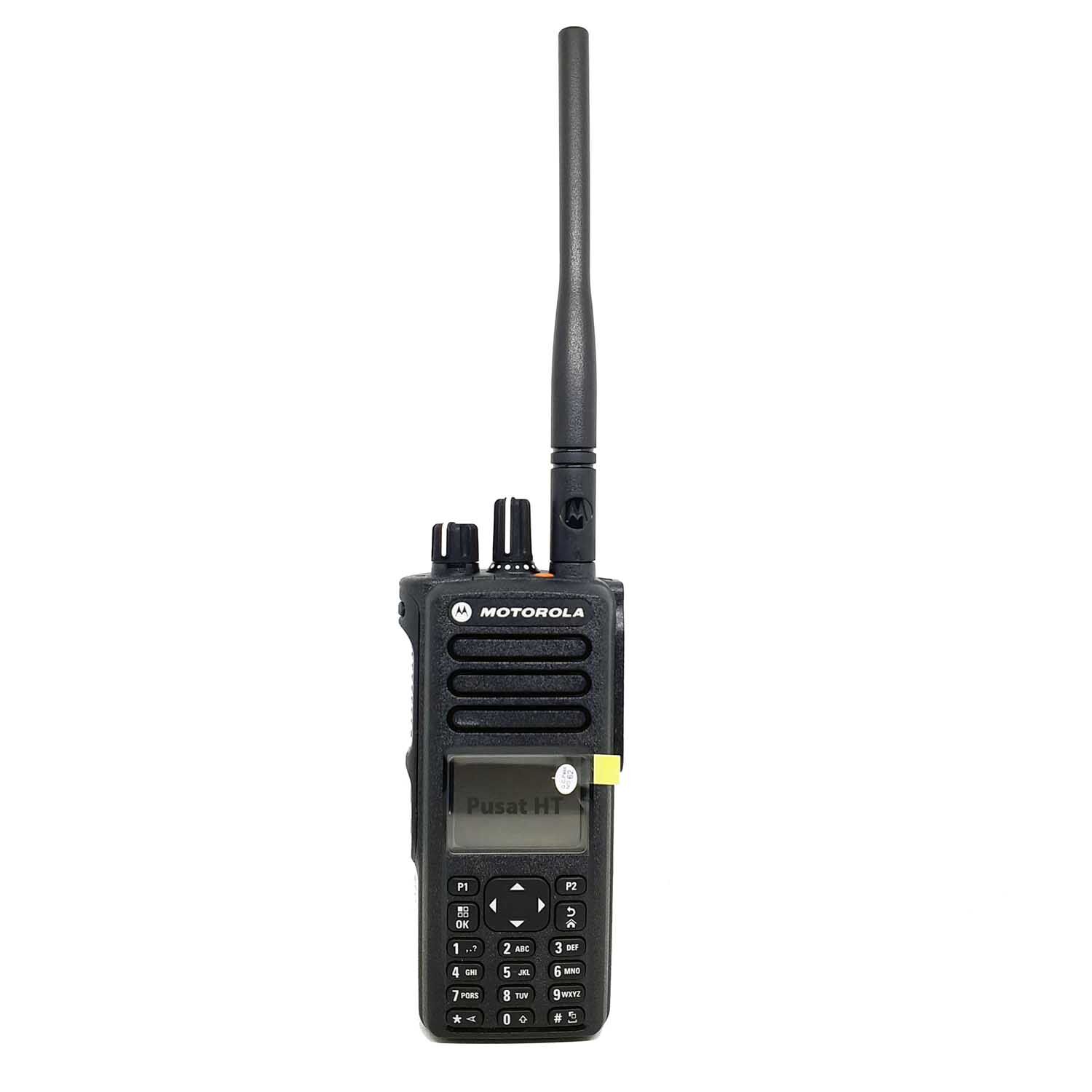

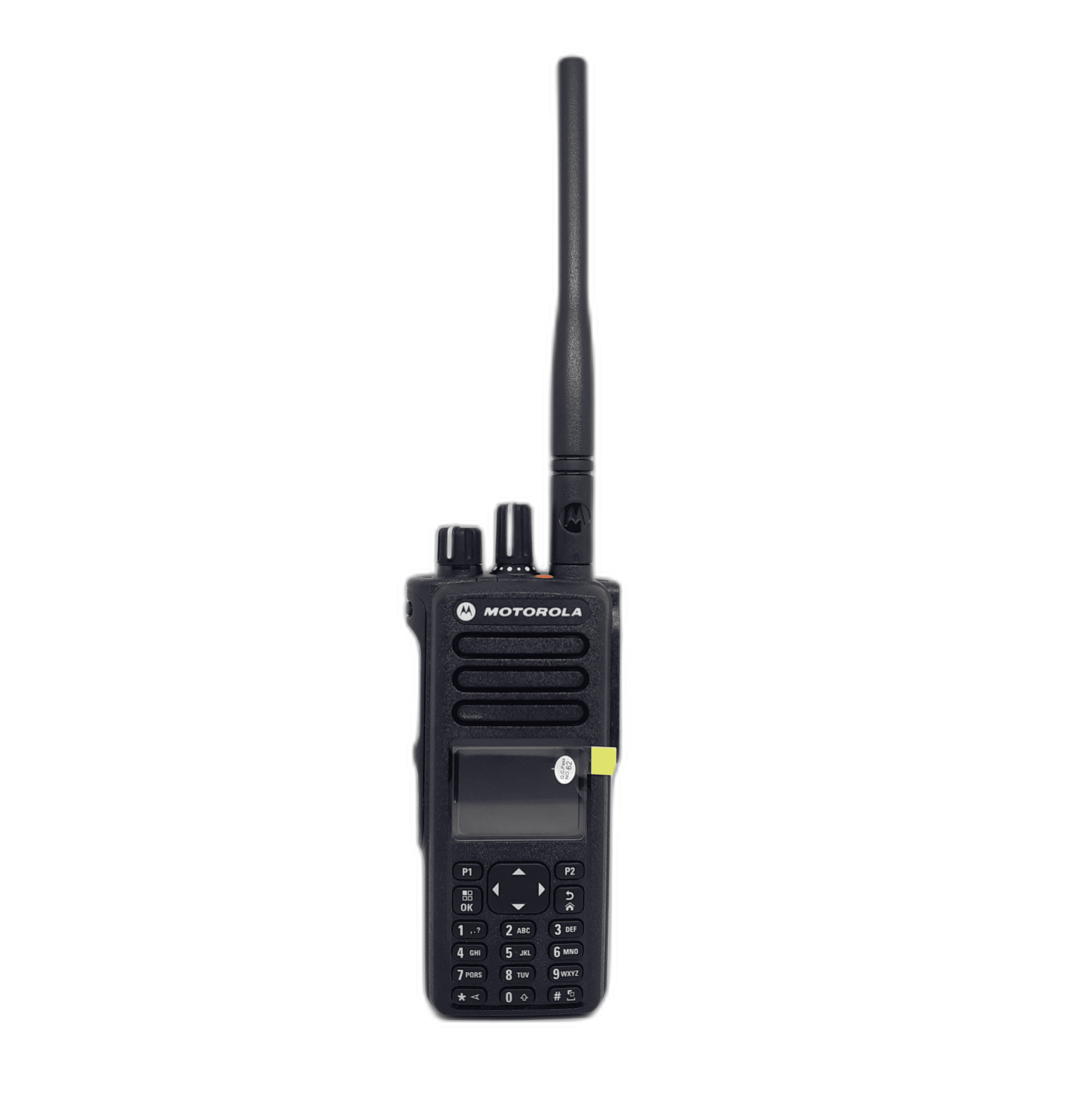

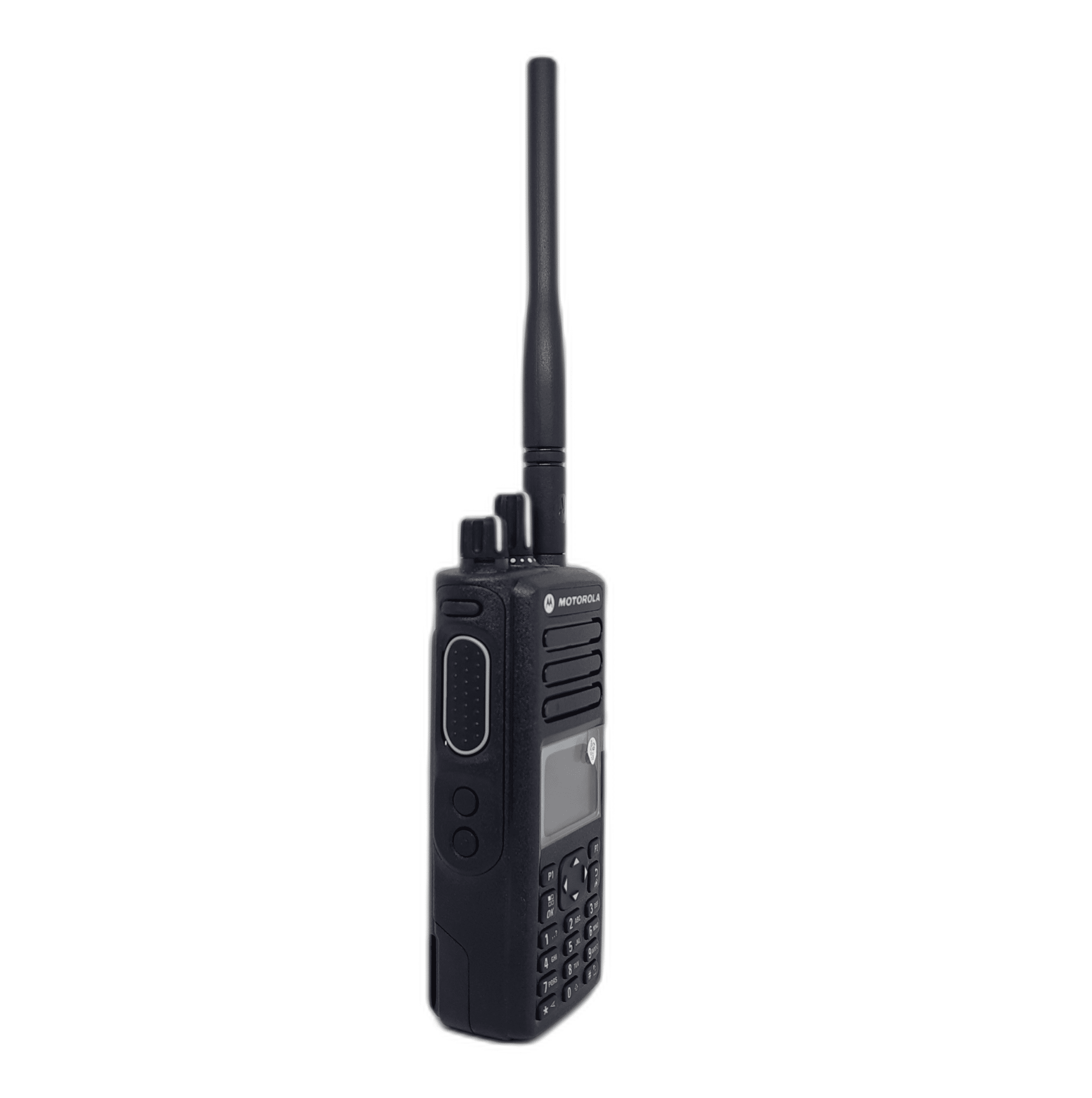

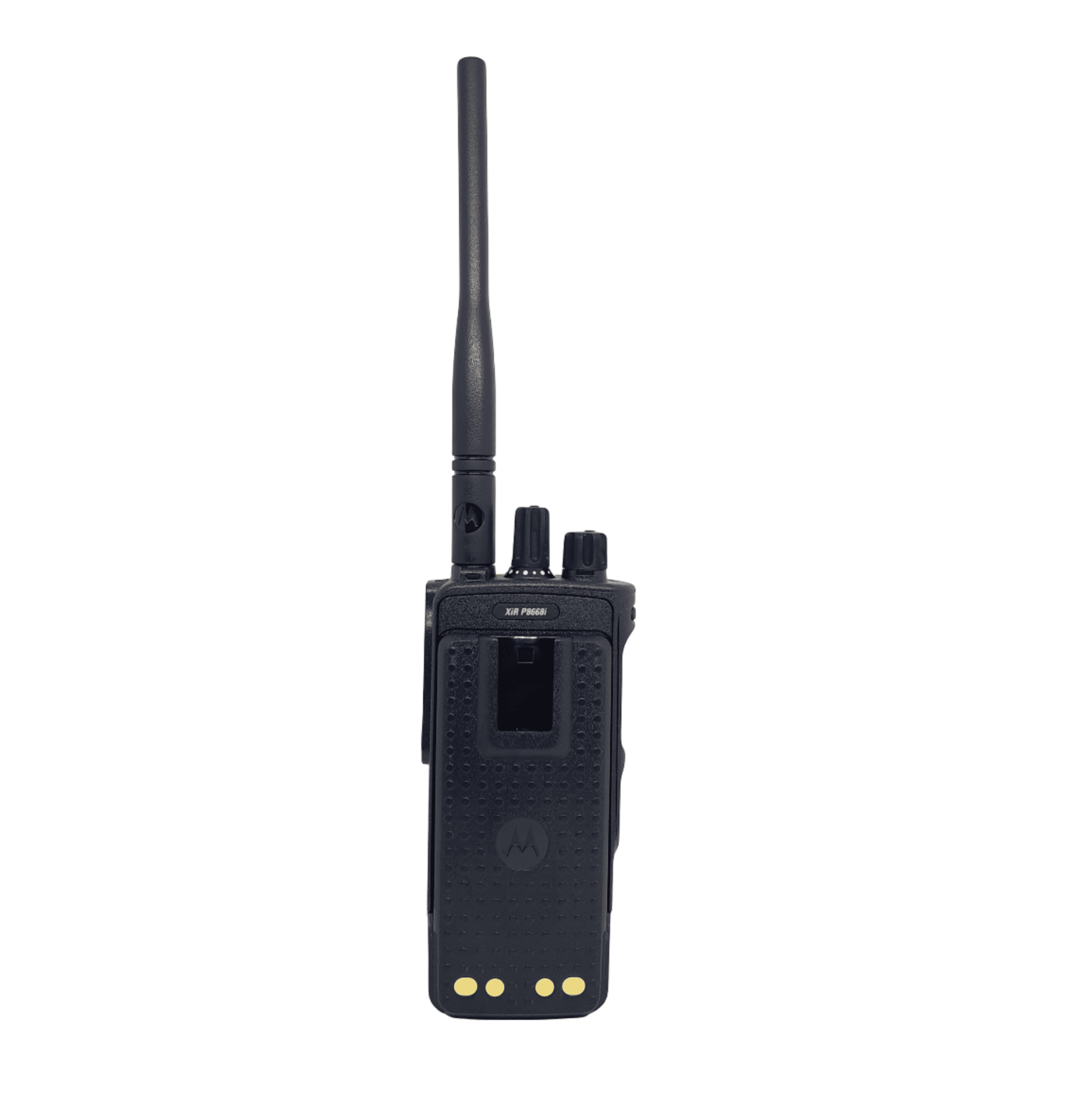

HT MOTOROLA XIR P8668i
HT MOTOROLA XIR P8668i With this dynamic evolution of MOTOTRBO digital two-way radios, you’re better connected, safer and more productive. The HT Motorola XiR P8600i Series is designed for the skilled professional who refuses to compromise. With high performance integrated voice and data, and advanced features for efficient operation, these next-generation radios deliver complete connectivity to your organisation.
Download Brochure
HT MOTOROLA XIR P8668i
SPESIFICATION:
Frekuensi 403-527 MHz
Spasi Saluran 12,5 / 25kHz
Stabilitas Frekuensi (-30 ° C, + 60 ° C, + 25 ° C Ref) ± 0,5 ppm
Sensitivitas Analog (12dB SINAD) 0.3uV (khas 0.22uV)
Sensitivitas Digital 0,25 uV (khas 0,19 uV)
Intermodulation (TIA603D) 70 dB
Selektivitas Saluran Yang Berdekatan (TIA603A) -1T 60dB @ 12,5 kHz / 70dB @ 25 kHz³
Selektivitas Saluran Yang Berdekatan (TIA603D) -2T 45dB @ 12,5 kHz / 70dB @ 25 kHz³
Spurious Rejection (TIA603D) 70 dB
Nilai Audio 0,5W
Audio Distortion @ Rated Audio 5% (khas 3%)
Hum dan Noise -40dB @ 12.5 kHz / -45dB @ 25 kHz³
Respons Audio TIA603D
Melakukan Spurious Emission (TIA603D) -57dBm
